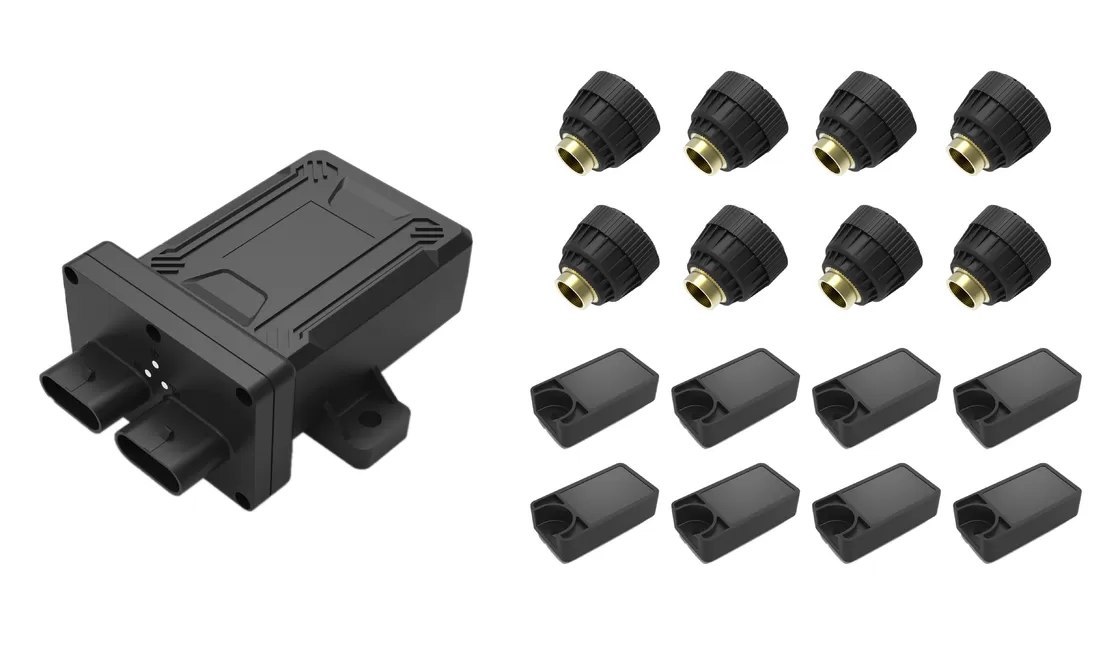

Types of TPMS Commercial External Sensors

Published On: October 28, 2026

Commercial external Tire Pressure Monitoring System (TPMS) sensors are categorized into the following four primary types:

1. Standard External Cap Sensors
  • Design: These directly replace the standard plastic valve dust caps on the tires.
  • Mechanism: They screw tightly onto standard 8mm or 12mm valve stems, depressing the mechanical valve core to sample real-time internal tire pressure and temperature.
  • Key Features: Highly compact and lightweight, these sensors typically include an outer anti-theft hex lock nut to prevent manual tampering or loose spinning caused by road vibrations.

2. Flow-Through External Sensors
  • Design: These resemble an extension of the valve stem itself, featuring a dual-ended, inline design.
  • Mechanism: They screw onto the existing valve stem but incorporate an integrated, active valve core on the opposite, exposed side.
  • Key Features: Air can be added or released without removing the sensor. This significantly minimizes routine maintenance downtime for high-utilization commercial fleets.

3. Heavy-Duty Large Bore Sensors
  • Design: Built with wider physical threads and highly ruggedized industrial casings.
  • Mechanism: They attach directly to large-bore (12V1 or wider) valves specifically found on oversized industrial machinery, earthmovers, and construction equipment.
  • Key Features: Engineered to withstand extreme physical impacts, debris, and intense off-road vibrations while flawlessly handling ultra-high pressure environments.

4. Heavy-Duty Brass / Anti-Corrosion Sensors
  • Design: Manufactured explicitly with premium-grade brass inner threads instead of standard aluminum or plastic alternatives.
  • Mechanism: Engineered for long-haul semi-trucks, commercial trailers, and intercity buses that log extensive highway mileage.
  • Key Features: Prevents galvanic corrosion and thread-fusing. This ensures the sensor will not fuse to the brass valve stem over extended periods in wet, salty, or winter-treated coastal environment conditions.
